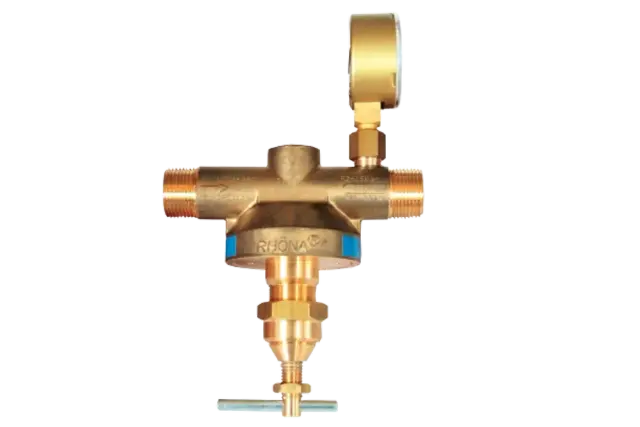

GPL400 Single-Stage Line Regulator

The Gasarc Tech Master GPL400 single-stage diaphragm line regulator is designed for secondary pressure gas control of non-corrosive or toxic, technical gases up to grade 4.5 purity (99.995%) in gas distribution systems.

GCE Druva

Description

Designed for accuracy and reliability, the Gasarc Tech Master GPL400 single-stage line regulator is suited to deliver dependable performance in demanding environments. It boasts a four-port design for flexible installation and supports rear panel mounting in restricted spaces. Its encapsulated seat design and low wetted surface area minimise the chances of contamination, resulting in consistent gas purity and efficient performance. With a wide array of inlet and outlet fittings, this diaphragm line regulator is adaptable to various applications.

Quantity
Enquire
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
  • Brass barstock body endures the harsh industrial environment.
  • Four-port configuration with an inlet port and two outlet ports allows for flexible installation.
  • Rear panel mounting maximises space efficiency in compact setups, ideal for restricted environments.
  • Encapsulated seat design reduces the risk of leaks and enhances the longevity of the regulator.
  • Low wetted surface area minimises contamination risk and ensures high gas purity.
  • Full range of inlet and outlet fittings provide compatibility with various systems.
  • GPL400 Series | Single Stage Diaphragm Line Regulator

‍

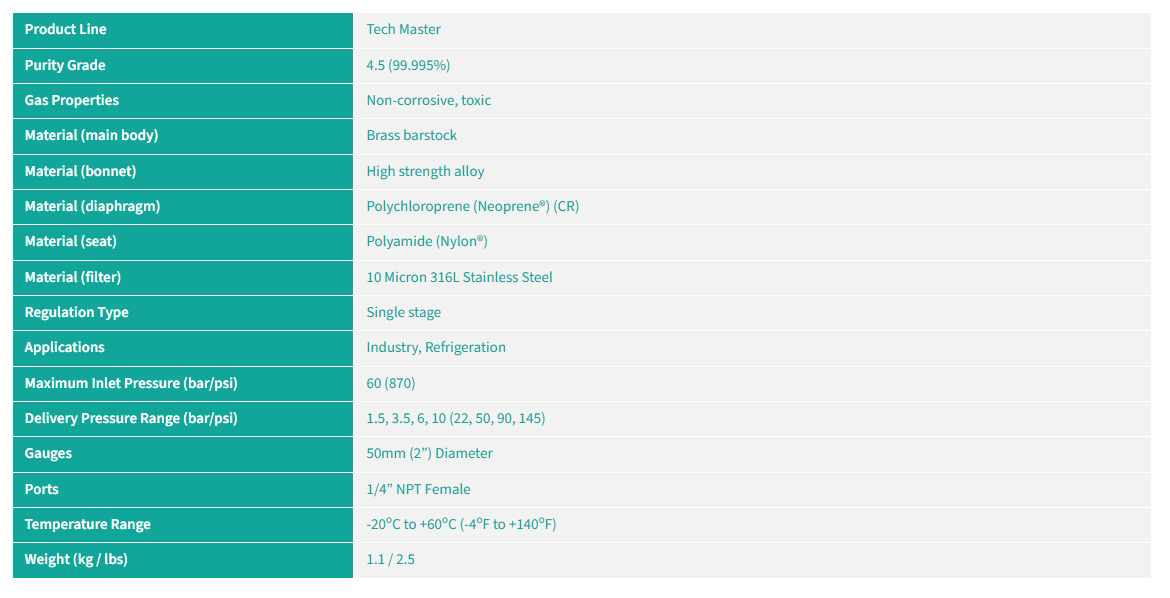

Specifications
General properties
