High-Purity Two-Port Regulating Valve - 50 Bar

The DruvaPUR 20 m³ Range high-purity two-port regulating valve is used in supply systems handling pure, inert, flammable, oxidising, corrosive, and toxic gases and gas mixtures up to a maximum purity of 6.0.

GCE Druva

Description

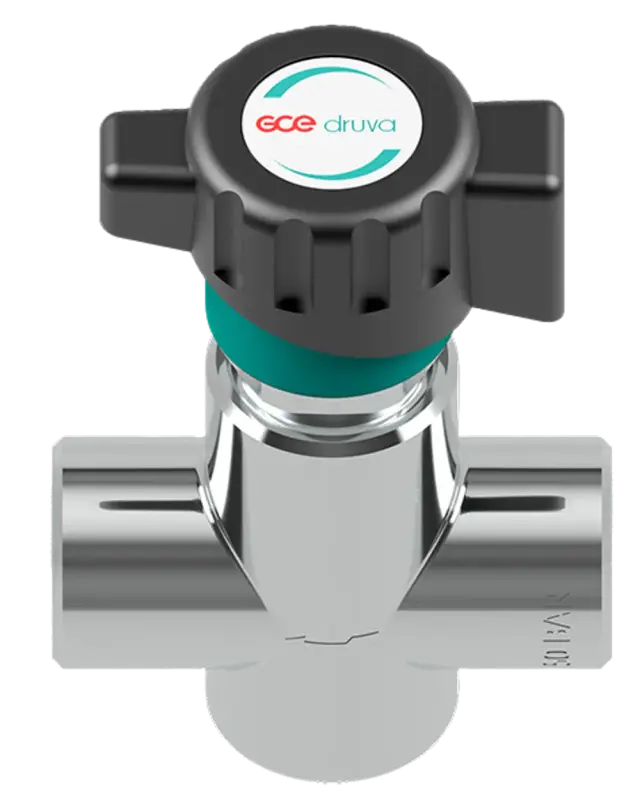

Achieve absolute precision with the Druva two-port metal diaphragm low-flow regulating valve, expertly engineered to provide seamless control in high-purity gas applications. Featuring an Elgiloy diaphragm tightening system, it offers a leak-proof seal to the atmosphere, ensuring reliability and safety. Its compact design allows easy integration into space-constrained installations. Compliant with EN ISO 10297:2015 and suitable for explosive atmospheres, this high-purity valve is what you need for highly sensitive environments.

Quantity
Enquire
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
  • Elgiloy diaphragm tightening system ensures a leak-proof seal to the atmosphere for enhanced reliability and safety.
  • Compact design enables efficient use of space during installation.
  • Designed and approved in accordance with relevant sections of EN ISO 10297:2015.
  • Electrostatic chargeability test
    • Meets requirements of DIN EN ISO 80079-36, IEC TS 60079-32-1, and German TRGS 727.
    • Usable in EX-areas zones 1 and 2 for gases with explosion risk group I, IIA, IIB, and IIC.

‍

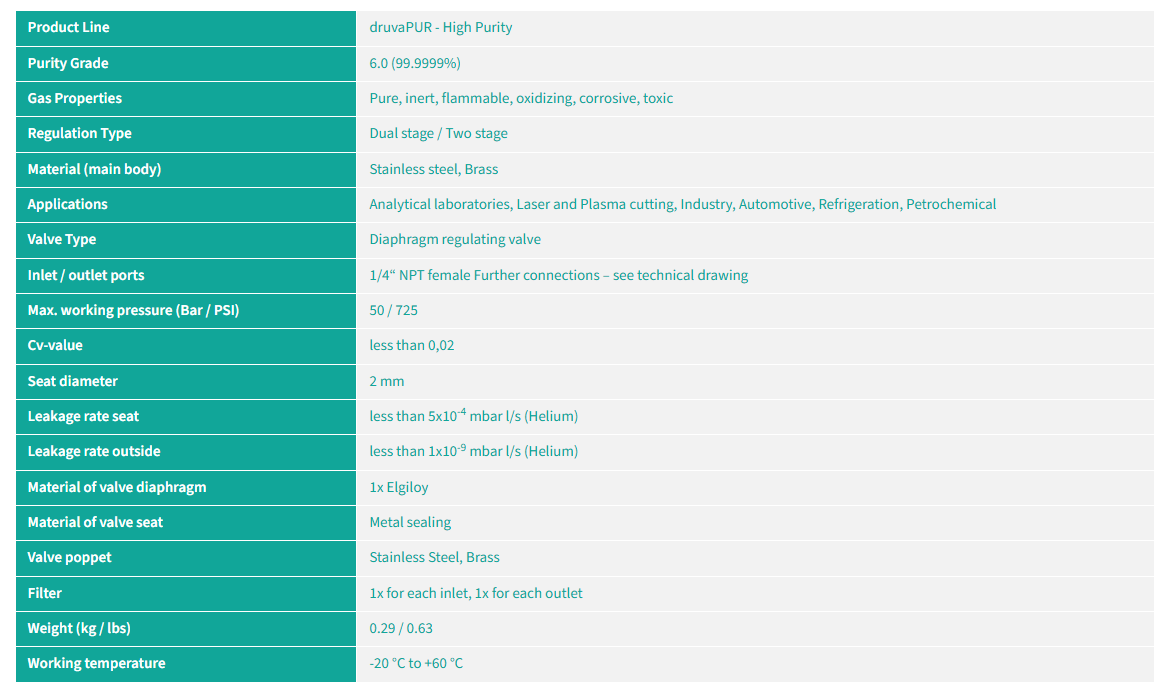

Specifications
General properties
