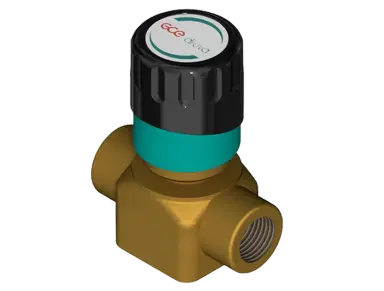

High-Purity Two-Port Shut-Off Valve - 40 Bar

The DruvaPUR 20 m³ range middle flow two-port shut-off valve is designed for safely handling high-purity, inert, flammable, and oxidising gases, with a maximum working pressure of up to 40 bar (600 psi).

GCE Druva

Description

Unlock the power of precision with the Druva high-purity two-port shut-off valve. It is engineered to handle high flow rates with ease and deliver seamless performance across various gas systems. With a Hastelloy diaphragm, this high-purity valve provides permanent technical tightness, ensuring a leak-proof seal and preventing contamination. This diaphragm shut-off valve is also oxygen-compatible and approved according to ISO 10297, meeting the strictest safety requirements for use in explosive environments (EX-zones 1 & 2).

Quantity
Enquire
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
  • Suitable for piping systems requiring higher flow rates, making it suitable for large-scale operations.
  • Hastelloy diaphragm ensures permanent technical tightness to the outside, providing a leak-proof seal to maintain integrity.
  • Capable of connecting tubes up to 25 mm (outlet diameter) ensures versatile system configurations.
  • Safe for oxygen applications due to the use of an approved seat material.
  • Approved in accordance with relevant sections of ISO 10297.
  • Electrostatic chargeability test
    • Meets requirements of DIN EN ISO 80079-36, IEC TS 60079-32-1, and German TRGS 727.
    • Usable in EX-areas zones 1 and 2 for gases with explosion risk group I, IIA, IIB, and IIC.

‍

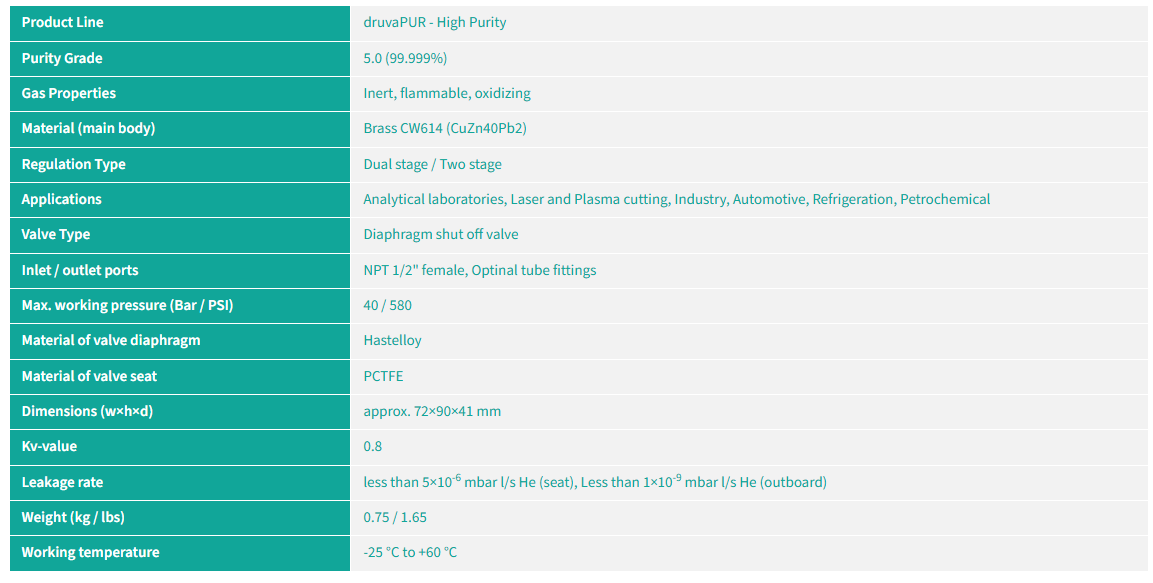

Specifications
General properties
