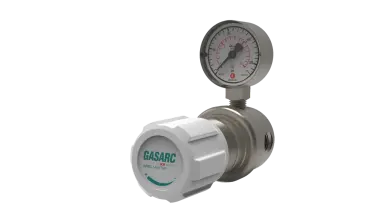

HPL600 High-Purity Single-Stage Line Regulator
The Gasarc Spec Master HPL600 single-stage diaphragm line regulator is designed for secondary pressure gas control of non-corrosive or toxic, high-purity gases up to grade 6.0 purity (99.9999%) in gas distribution systems.

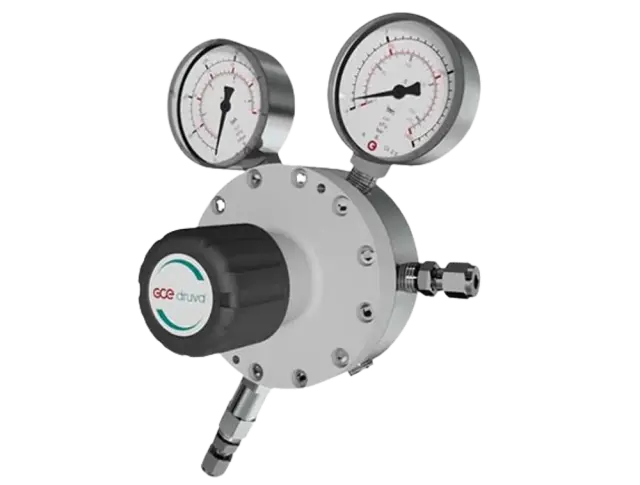

GCE Druva
Description
It comes with an encapsulated seat design to prevent leaks and boasts a low wetted surface area to reduce the probability of contamination in high-purity applications. This diaphragm gas regulator offers a four-port configuration and front and rear panel mounting options, making it adaptable for confined spaces. A range of inlet and outlet fittings allows for customisation to different gas supply systems, ensuring ease of installation in various applications.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
- Nickel-plated brass barstock construction ensures outstanding durability and corrosion resistance for reliable, long-term use.
- Four-port configuration includes two outlet ports and a side inlet port for optimal gas management and monitoring.
- Encapsulated seat design provides a secure seal to minimise contamination risks, ensuring high purity in gas applications.
- Low wetted surface area reduces gas retention and potential contamination.
- Side entry option offers installation flexibility to accommodate specific layout needs and maximises space efficiency.
- HPL600 Series | Single Stage Diaphragm Line Regulator

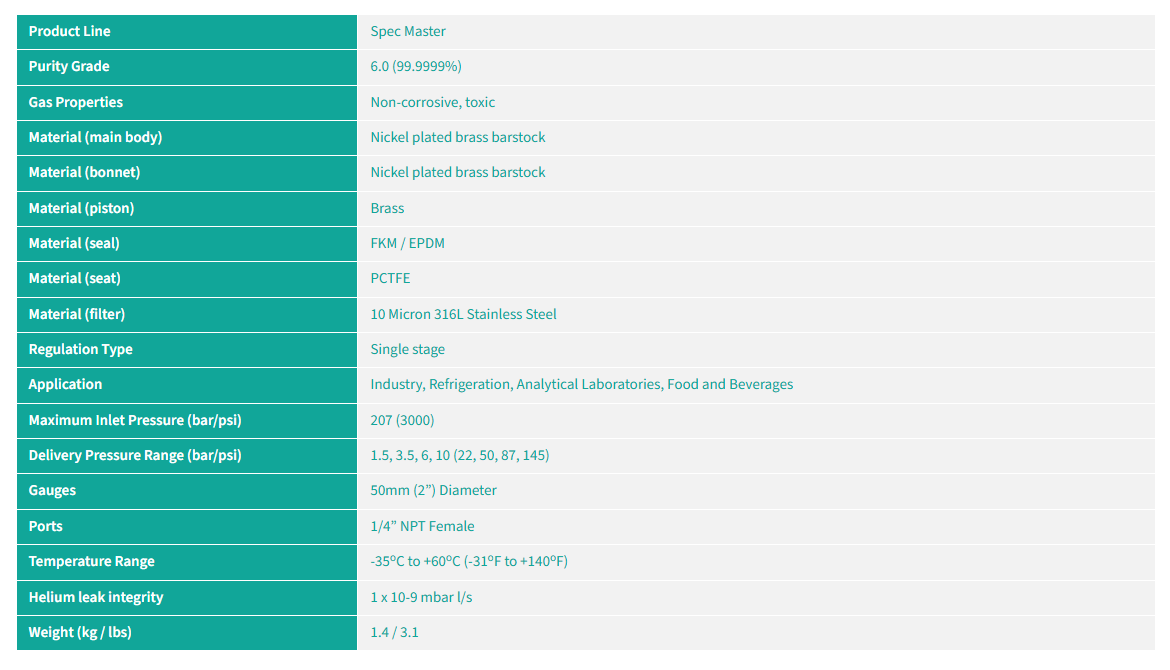

Specifications
