HPS620 High-Purity Single-Stage Cylinder Regulator

The Gasarc Spec Master HPS620 single-stage piston cylinder regulator is designed for primary pressure gas control of non-corrosive or toxic, high-purity gases up to grade 6.0 (99.9999%) in applications where slight variation from decreasing cylinder pressure is acceptable.

GCE Druva

Description

Ensure optimal gas purity and flow with the Gasarc Spec Master HPS620 high-purity single-stage regulator that leads the industry in performance. Its encapsulated seat design minimises leaks and ensures longevity. With a low wetted surface area, this piston pressure regulator efficiently handles high-purity gases in precision applications. The flexible base and side entry fittings provide versatile installation options, allowing it to be seamlessly integrated into various setups.

Quantity
Enquire
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
  • Nickel-plated brass barstock body delivers superior durability and resistance to corrosion for enhanced longevity.
  • Six-port configuration features two inlet ports and two outlet ports for versatile gas routing and connection.
  • Front and rear panel mounting is suitable for various setups and space constraints.
  • Encapsulated seat provides optimal sealing performance, reducing the risk of contamination and ensuring high purity.
  • Low wetted surface area minimises gas retention and contamination risk, supporting high-purity applications.
  • Comprehensive range of inlet and outlet fittings ensures compatibility with diverse systems and gas types.
  • HPS621 Series | Single Stage Piston Cylinder Regulator, FKM Seal
  • HPS622 Series | Single Stage Piston Cylinder Regulator, EPDM Seal

‍

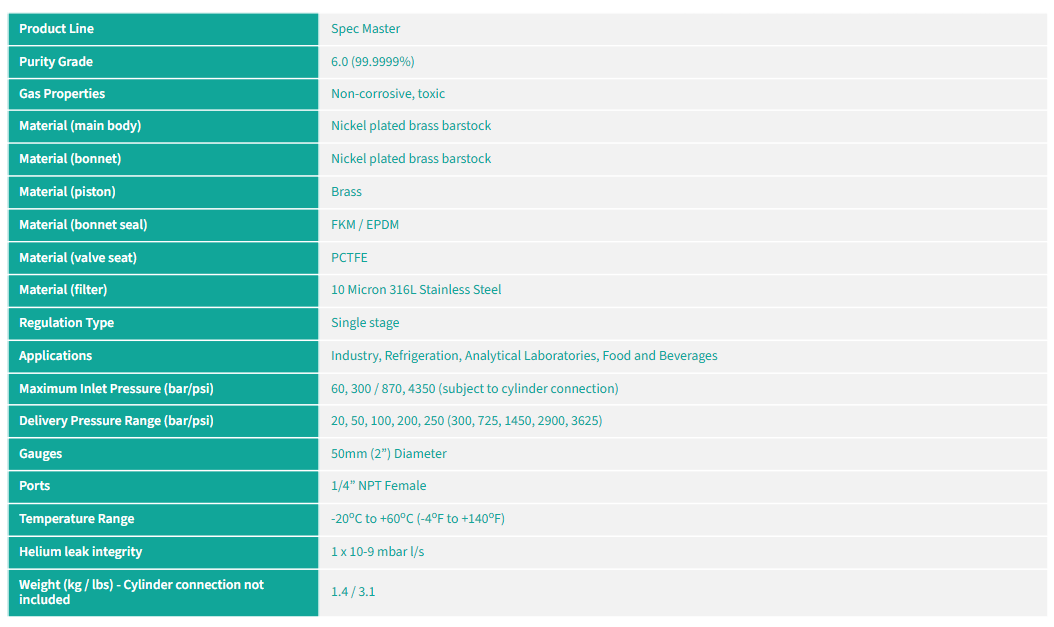

Specifications
General properties
