LGT500 High-Purity Two-Stage Cylinder Regulator

The Gasarc Lab Master LGT500 two-stage diaphragm cylinder regulator is designed for primary pressure gas control of non-corrosive or toxic, high-purity gases up to grade 5.0 purity (99.999%) in applications where constant delivery pressure is required as the cylinder pressure decreases.

GCE Druva

Description

The Gasarc Lab Master LGT500 high-purity two-stage regulator provides secure and reliable gas control in critical environments. It boasts a six-port configuration with a couple of inlet outlets and a relief valve, offering users comprehensive control over gas flow and pressure. Its encapsulated seat design improves sealing, reducing the risk of leaks and prolonging the operational life. The low wetted surface area ensures minimal contamination, making this two-stage diaphragm regulator an ideal choice for high-purity gases. The flexibility of inlet and outlet fitting options enhances installation possibilities, supporting various gas supply systems.

Quantity
Enquire
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
  • Nickel-plated brass barstock construction provides superior corrosion resistance and durability.
  • Six-port configuration facilitates flexible connectivity options.
  • Encapsulated seat design and low wetted surface area minimise contamination risk.
  • Full range of inlet and outlet fittings offer compatibility with various systems.
  • LGT501 Series | Two Stage Diaphragm Cylinder Regulator, FKM Seal, FKM Pressure Relief Valve
  • LGT502 Series | Two Stage Diaphragm Cylinder Regulator, EPDM Seal, EPDM Pressure Relief Valve

‍

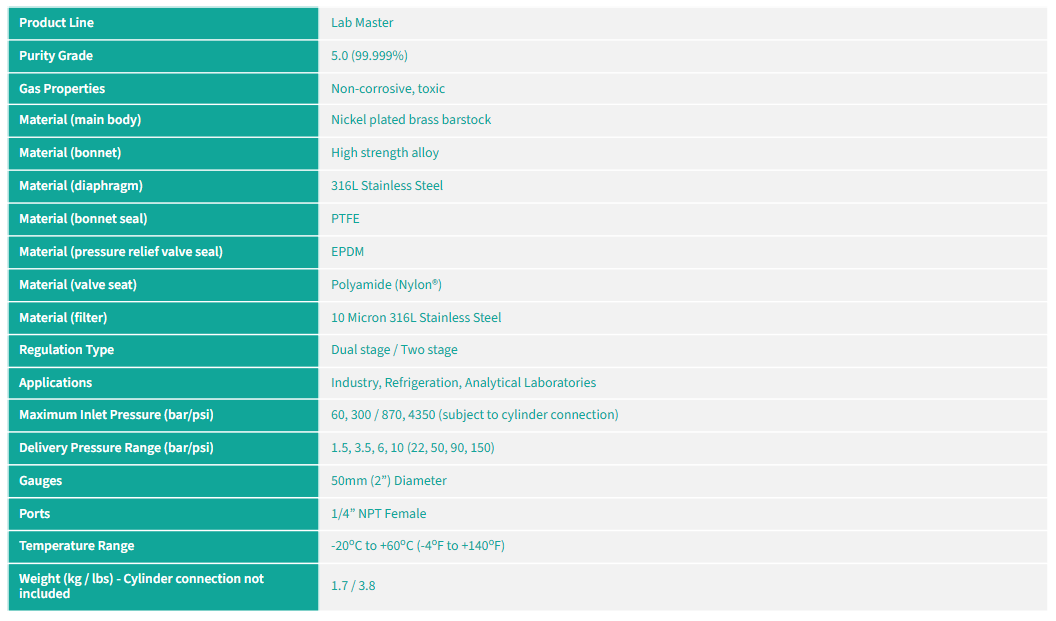

Specifications
General properties
