LifeGuard High Pressure Hoses
LifeGuard Technologies
Description
"LifeGuard High Pressure Hoses feature advanced safety technology to prevent hose failure, ensuring secure transfer of hazardous fluids in demanding environments."
A Flexible “Safety System” for use in the transfer of highpressure gases and liquids. Protect against the hazardouseffects of high pressure hose rupture, pull-apartand failure.The LifeGuardtm design utilizes the unique, patentpending design that eliminates the potential for disasterthrough the use of an internal compression spring deviceconnected to specially designed, normally unseatedvalves located on each end of the spring. In the eventof hose separation, stretching to the point of an unsafecondition or coupling-to hose separation, the valvesare released and instantly seat stopping the flow inboth directions.

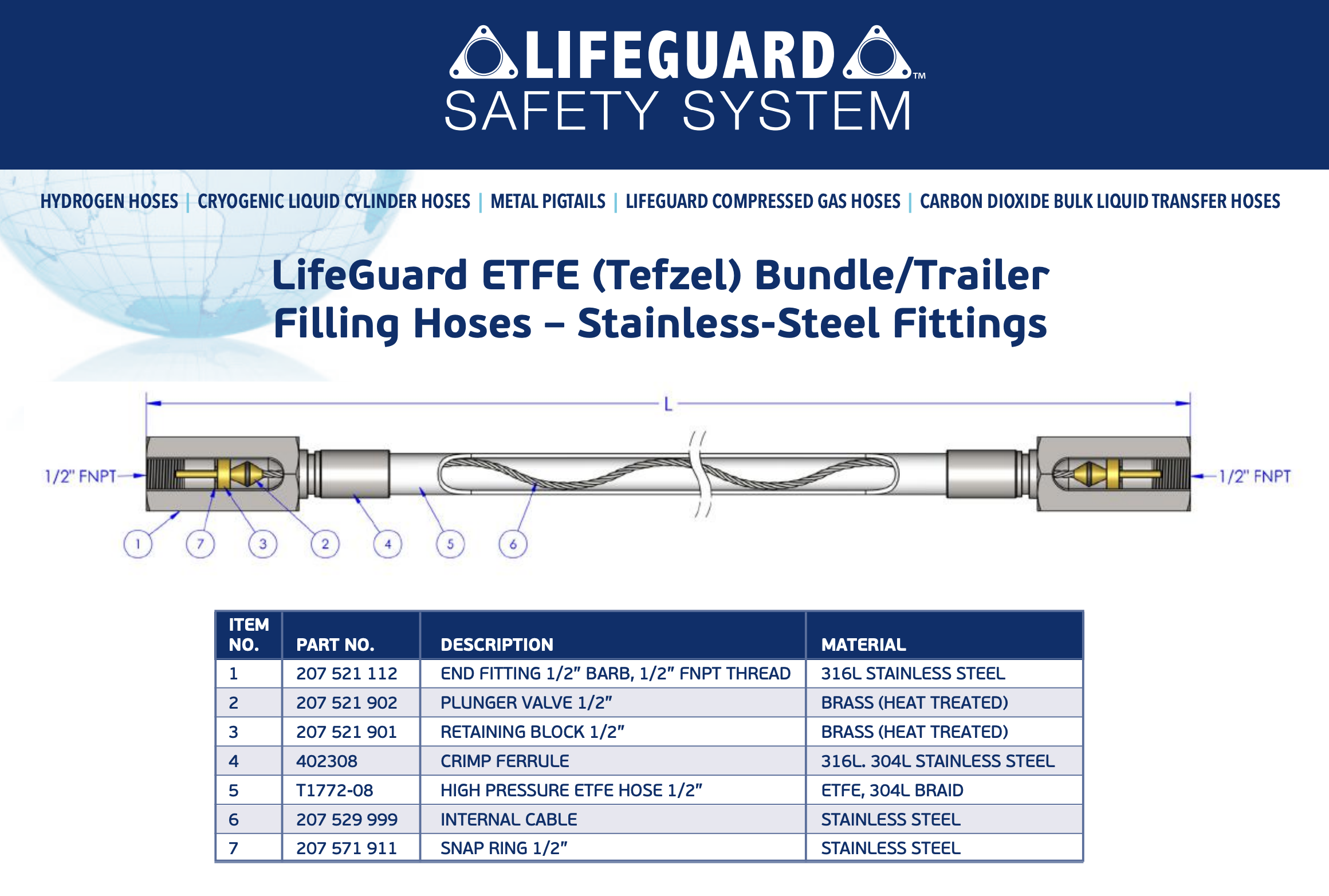

APPLICATION: ETFE TEFZEL® CORE,
STAINLESS STEEL BRAID - Designed specifically for the
ultra-hazardous applications of high-pressure hydrogen gas transfer in tube trailers, facilities andcylinders.
Whether you prefer metallic or Tefzel®, the LifeGuard hydrogen hose is the Safe-Choice.
LifeGuardTefzel® ETFE Lined Stainless Steel Braided HosesLifeGuard’s Tefzel® ETFE inner core has a permeationrate that is approximately 77% lower than PTFE innercore pigtails. This makes it an ideal choice for helium and hydrogen.
CONSTRUCTION: All LifeGuard ETFE double braided compressed gas hosescome in female NPT or BSP threads.
MAXIMUM WORKING PRESSURE:½˝ ID-up to 3500 PSI at 70 F.
