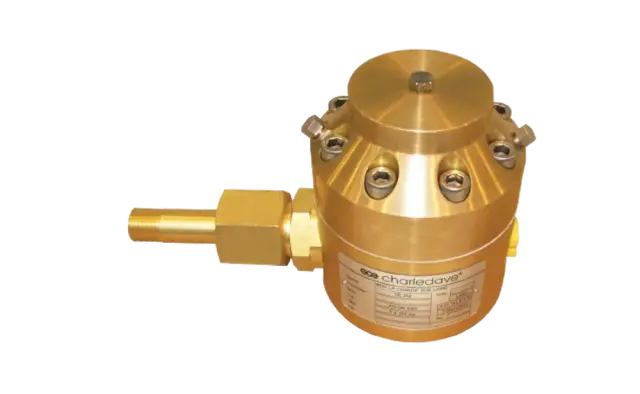

LTMHXSF Four-Port Single-Stage Line Regulator

The DruvaTEC 100 m3 Series LTMHXSF four-port single-stage line regulator can be used for the supply of industrial, inert, flammable, and oxidising gasses and gas mixtures. Not suitable for corrosive or toxic gases and gas mixtures.

GCE Druva

Description

The Druva LTMHXSF four-port single-stage line regulator efficiently reduces high supply pressures and ensures safe, reliable gas flow for industrial applications. Its advanced Hastelloy diaphragm tightening system prevents leaks, while the compact design ensures easy installation. Certified to meet international standards, this single-stage pressure regulator is designed for safe operation in challenging environments, making it perfect for use in EX-areas with explosion hazards.

Quantity
Enquire
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
  • H0 version with FKM seal | HE version with EPDM seal
  • Hastelloy diaphragm tightening system to the atmosphere, ensuring a secure seal for reliable gas flow.
  • Compact design with pressure compensation facilitates easy installation and stable performance.
  • Excellent pressure adjustment for precise control over the gas flow.
  • Maintains consistent outlet pressure as the inlet pressure decreases, ensuring smooth gas regulation.
  • Designed and approved according to ISO 7291, including the O2 ignition test.
  • Relief Valve option is available on the delivery pressure side for added safety and control.
  • Electrostatic chargeability test:
    • Fulfils requirements according to ISO 80079-36, IEC TS 60079-32-1, and German TRGS 727.
    • Usable in EX-areas zones 1 and 2 for gases with explosion risk group I, IIA, IIB, and IIC.

‍

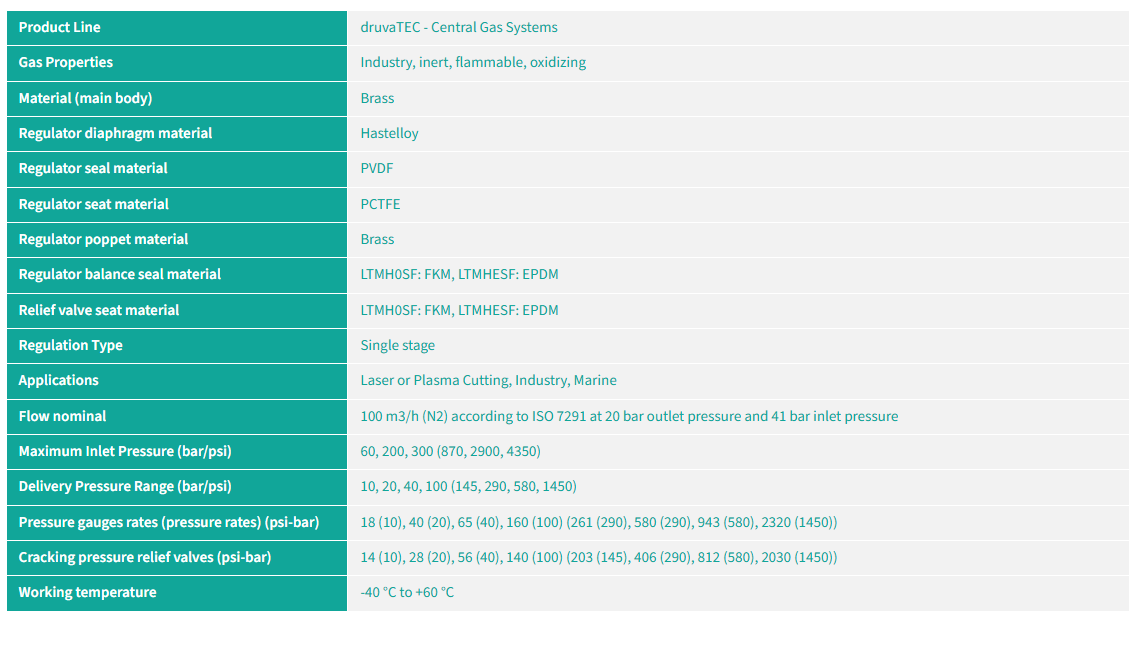

Specifications
General properties
