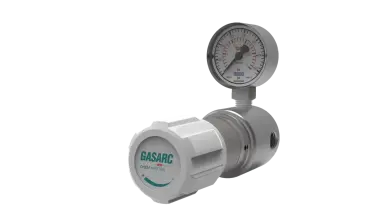

SGL620 High-Purity Single-Stage High-Pressure Line Regulator

The Gasarc Chem Master SGL620 single-stage piston line regulator is designed for secondary pressure gas control of corrosive or toxic, high-purity gases up to grade 6.0 purity (99.9999%) in gas distribution systems.

GCE Druva

Description

Take control of high-pressure gas management with the Gasarc Chem Master SGL620 high-purity single-stage line regulator, crafted for secondary pressure control of highly pure and corrosive gases. It features an encapsulated seat and low wetted surface area for consistent performance with no contamination. This high-pressure line regulator features a four-port configuration with two outlet ports and a side inlet port, front and rear panel mounting options, and a full range of inlet and outlet fittings, supporting a variety of flexible installation options.

Quantity
Enquire
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
  • Stainless steel construction ensures exceptional durability and resistance to corrosion.
  • Four-port configuration offers flexibility for gas management.
  • Front and rear panel mounting capabilities enable usability in various settings.
  • Encapsulated seat design provides a reliable seal that minimises leakage.
  • Low wetted surface area lowers the risk of contamination for consistent purity.
  • SGL621 Series | Single Stage Piston Line Regulator, FKM Seal
  • SGL622 Series | Single Stage Piston Line Regulator, EDPM Seal

‍

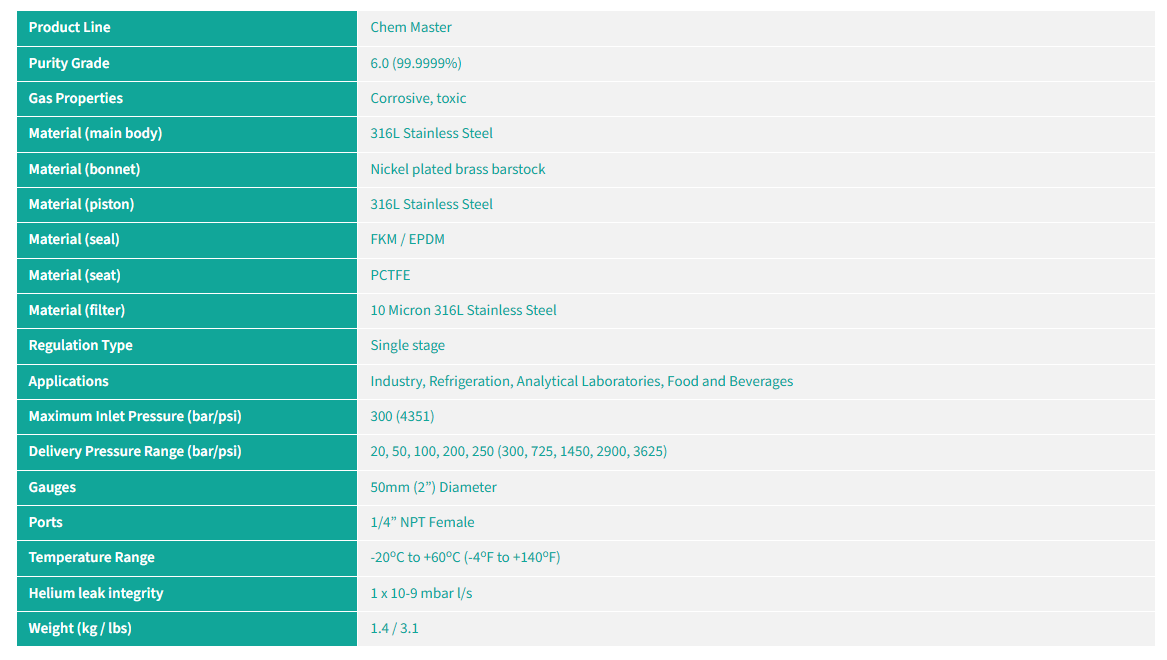

Specifications
General properties
