TPU Peristaltic Pump Heads
TPU Peristaltic Pump Heads
Aalborg Instruments & Controls
Description
The simplicity of the pump head design provides users with the flexibility to connect their own motor or to purchase one from our catalog.
- Economical
- Compact design for small footprint
- Adjustable occlusion wall

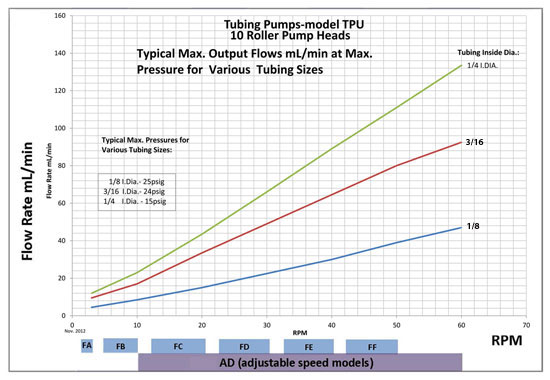

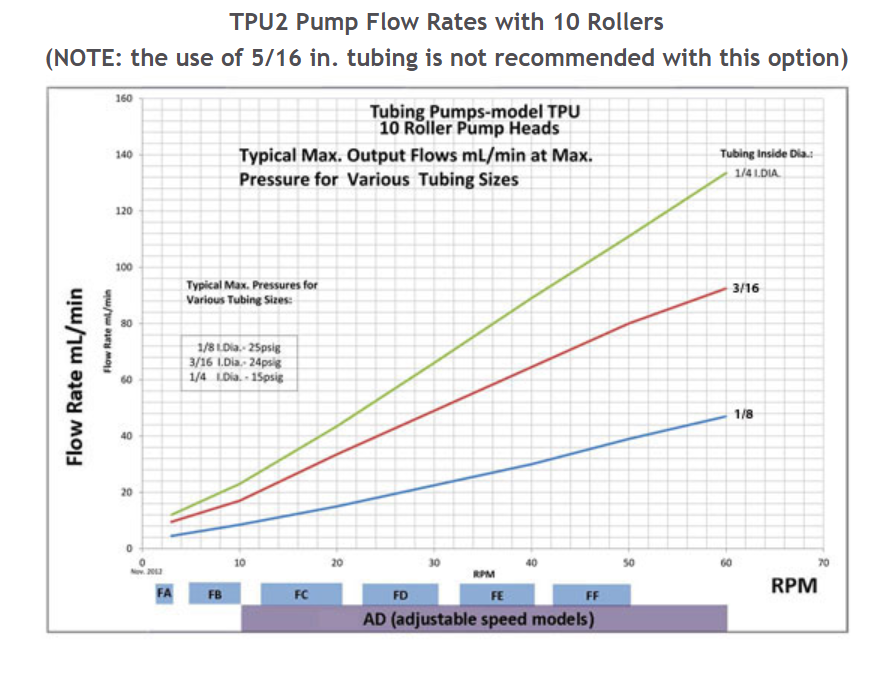

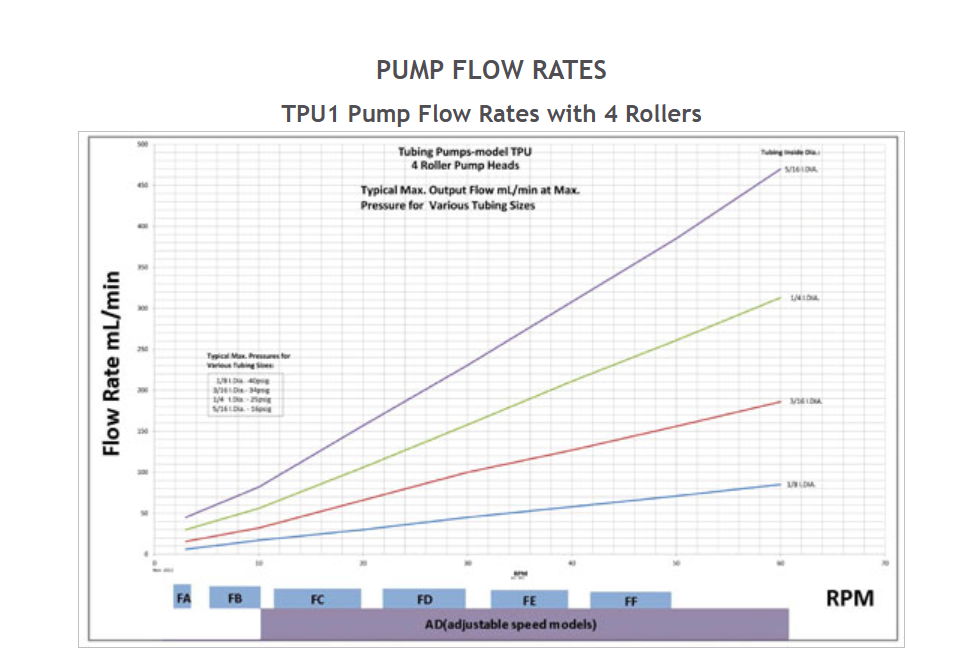

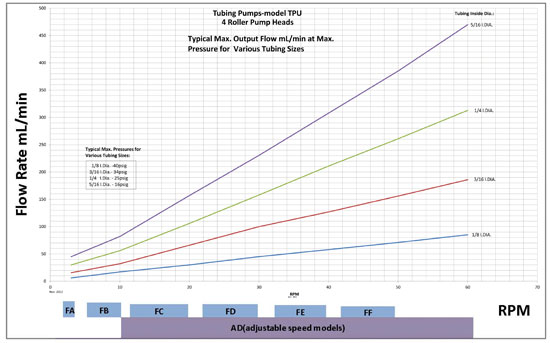

- TPU1 has 4 rollers, TPU2 has 10
- Stainless steel rollers & shafts
- Motor (including mounting kit) available or user provides motor
- Can be mounted in any direction
- Long tubing life
- Safety cover
TUBING INSIDE DIAMETERS: 1/8 in., 3/16 in., 1/4 in. or 5/16 in.
TUBING WALL THICKNESS: 1/16 in.
RECOMMENDED TUBING MATERIALS: Tygon E-3603, peroxide-treated silicone, platinum-treated silicone, PharMed, Versilic silicone, Tygon Sanitary silicone, Norprene, Tygon Long Flex Life, and Hypalon
MAXIMUM LIFT, PUMP HEAD: 340 in. H2O (12.3 psig)
MAXIMUM SUCTION, PUMP HEAD: 350 in. H2O (12.6 psig)
DIMENSIONS: 6.50 in. (165 mm) wide x 4.12 in. (105 mm) high x 1.61 in. (41 mm) deep
MATERIALS OF CONSTRUCTION: anodized aluminum, 316 stainless steel rollers and shafts
