TPV Peristaltic Pump Heads
TPV Peristaltic Pump Heads
Aalborg Instruments & Controls
Description
The simplicity of the pump head design provides users with the flexibility to connect their own motor or to purchase one from our catalog.
- Economical
- Compact design for small footprint
- .
- 3 stainless steel rollers
- .
- Motor (including mounting kit) available or user provides motor
- Can be mounted in any direction
- Long tubing life
- Safety cover (not shown)

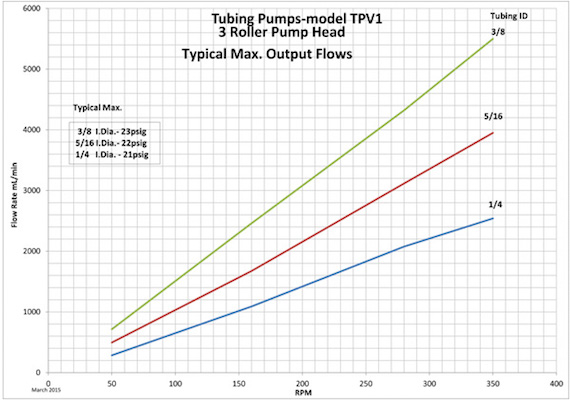

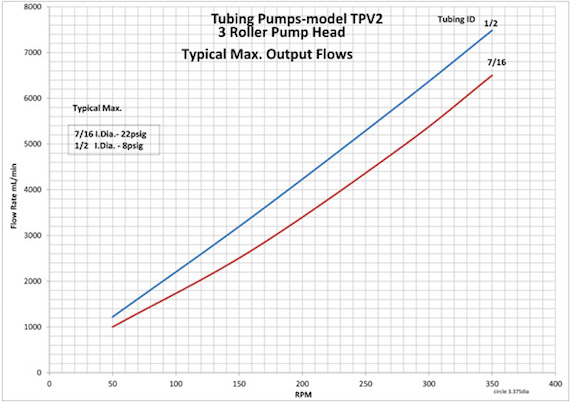

TUBING INSIDE DIAMETERS: 1/4, 5/16 or 3/8 in. for TPV1, 7/16 or 1/2 in. for TPV2
TUBING WALL THICKNESS: 1/16 in.
RECOMMENDED TUBING MATERIALS: Tygon E-3603, peroxide-treated silicone, platinum-treated silicone, PharMed, Versilic silicone, Tygon Sanitary silicone, Norprene, Tygon Long Flex Life, and Hypalon
MAXIMUM LIFT, PUMP HEAD: 310 in. H2O (11.2 psig)
MAXIMUM SUCTION, PUMP HEAD: 310 in. H2O (11.2 psig)
DIMENSIONS: 7.70 in. (195.6 mm) wide x 6.56 in. (166.2 mm) high x 2.31 in. (58.9 mm) deep
MATERIALS OF CONSTRUCTION: anodized aluminum, 316 stainless steel rollers and shafts
