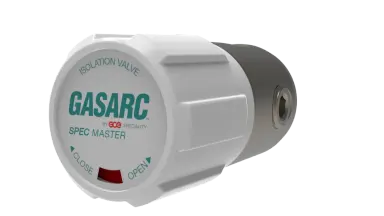

VAA360 High-Purity Isolation Valve

The Gasarc Spec Master VAA360 high-purity isolation valve is designed for use in gas control of non-corrosive or toxic, high-purity gases up to grade 6.0 purity (99.9999%).

GCE Druva

Description

Ensure the integrity of your systems by using the Gasarc Spec Master VAA360 high-purity isolation valve. It features a nickel-plated brass body and 316L stainless steel piston, with low-wetted surface area, to minimise contamination to maintain consistent gas purity. This high-pressure gas valve's four-point configuration supports flexible installation with three inlets and one outlet. The colour-coded On/Off display offers immediate visual feedback on valve status, ensuring operational clarity in high-stakes environments.

Quantity
Enquire
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
  • Four-point configuration (3 inlets and 1 outlet) for adaptable setups.
  • Low-wetted surface area to reduce purge requirements and contamination risks.
  • Nickel-plated brass body and 316L stainless steel piston for durability.
  • Colour-coded On/Off display (green for open, red for closed) for operational visibility.
  • Rear panel mounting for easy installation.
  • Optional mounting bracket for flexible mounting options.

‍

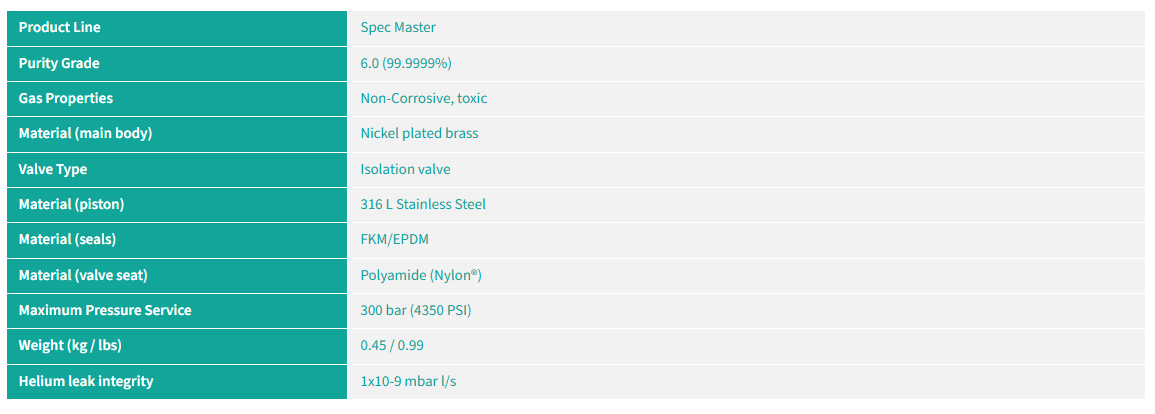

Specifications
General properties

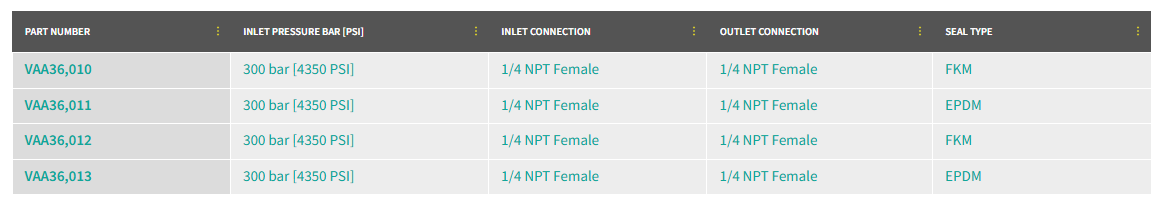

Configurations
