XFM digital mass flow meter
XFM digital mass flow meter
Aalborg Instruments & Controls
Description

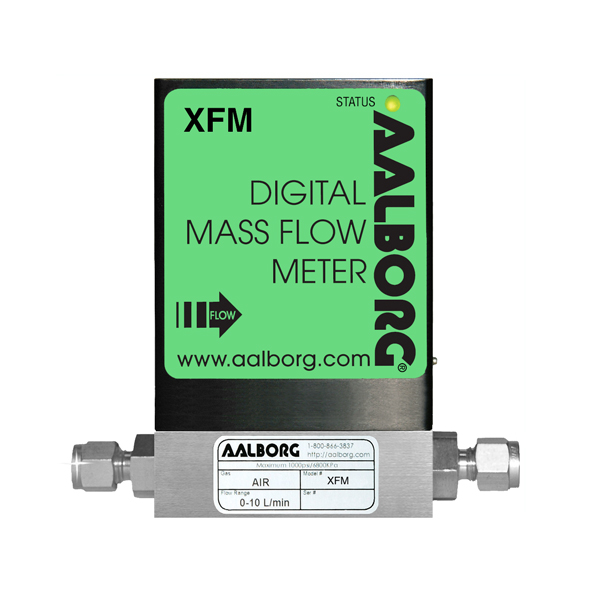

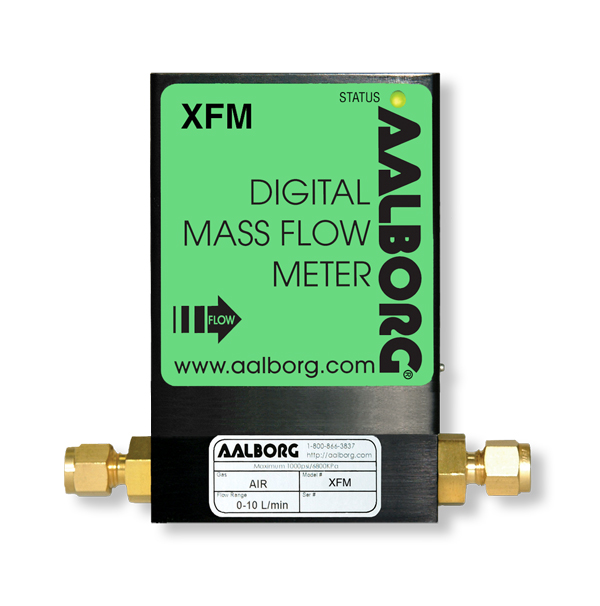

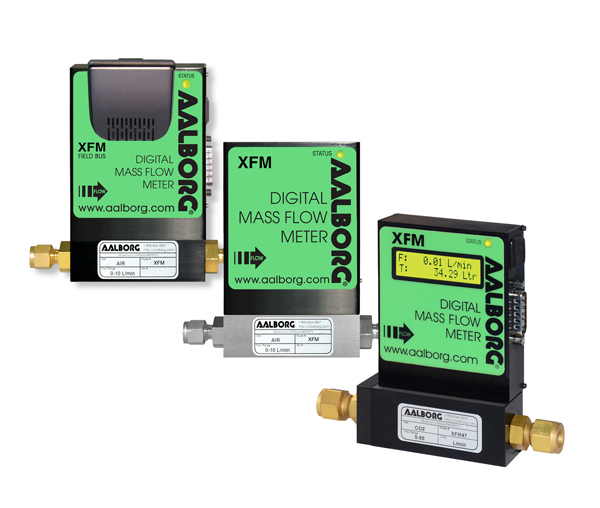

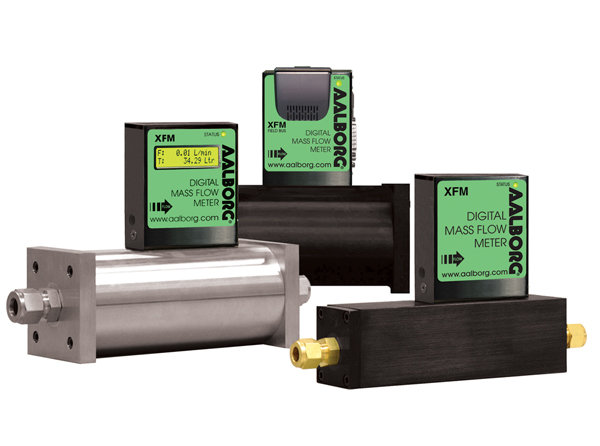

XFM low cost aluminum or stainless steel digital thermal mass flow meters
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Features
- Supports up to 23 Engineering Units (including User Defined).
- Stores calibration data for up to 10 gases.
- Programmable Totalizer indicates total gas quantity.
- High and low gas flow Alarm limits with preset delay interval.
- Two sets of user-programmable electromechanical SPDT relays with latch option.
- User-selectable analog 0-5 Vdc or 4-20mA outputs.
- Internal Conversion factors for up to 32 gases.
- Digital Interface (RS-232 / RS-485, Profibus DP available).
- Multi-Drop Capability of up to 256 units (RS-485 option).

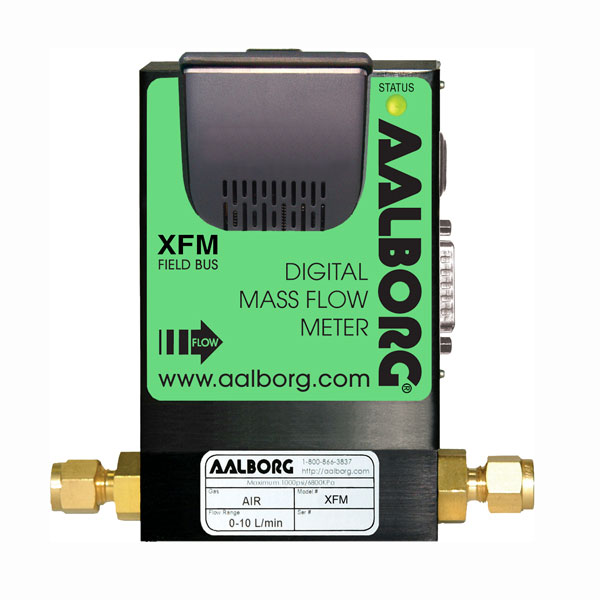

- Optional Profibus DP interface with I&M functionality.
- Automatic sensor zero offset adjustment (via digital interface or local push button).
- Self-Diagnostic Tests.

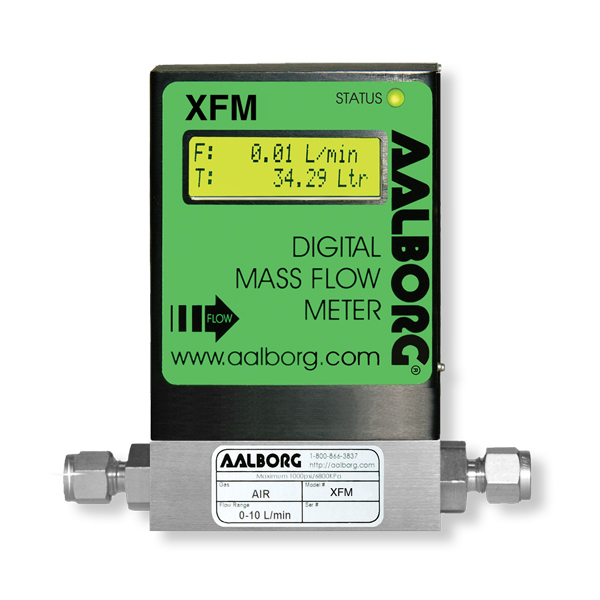

- Local 2 x 16 characters LCD display* with adjustable back light(optional).
Specifications
XFM07A-VAN6-A2XFM07,ALUMINUM,VITON-A SEALS,1/4" COMPRESSION. FITTING,NO DISPLAY,11 - 26 VDC POWER,0 - 5 VDC/RS232
3NC-00-SSNitrogen N2 0 - 5 STANDARD ML/MIN STANDARD METERING PRESSURE (14.7 PSIA) STANDARD TEMPERATURE (21.1°C / 70°F)
