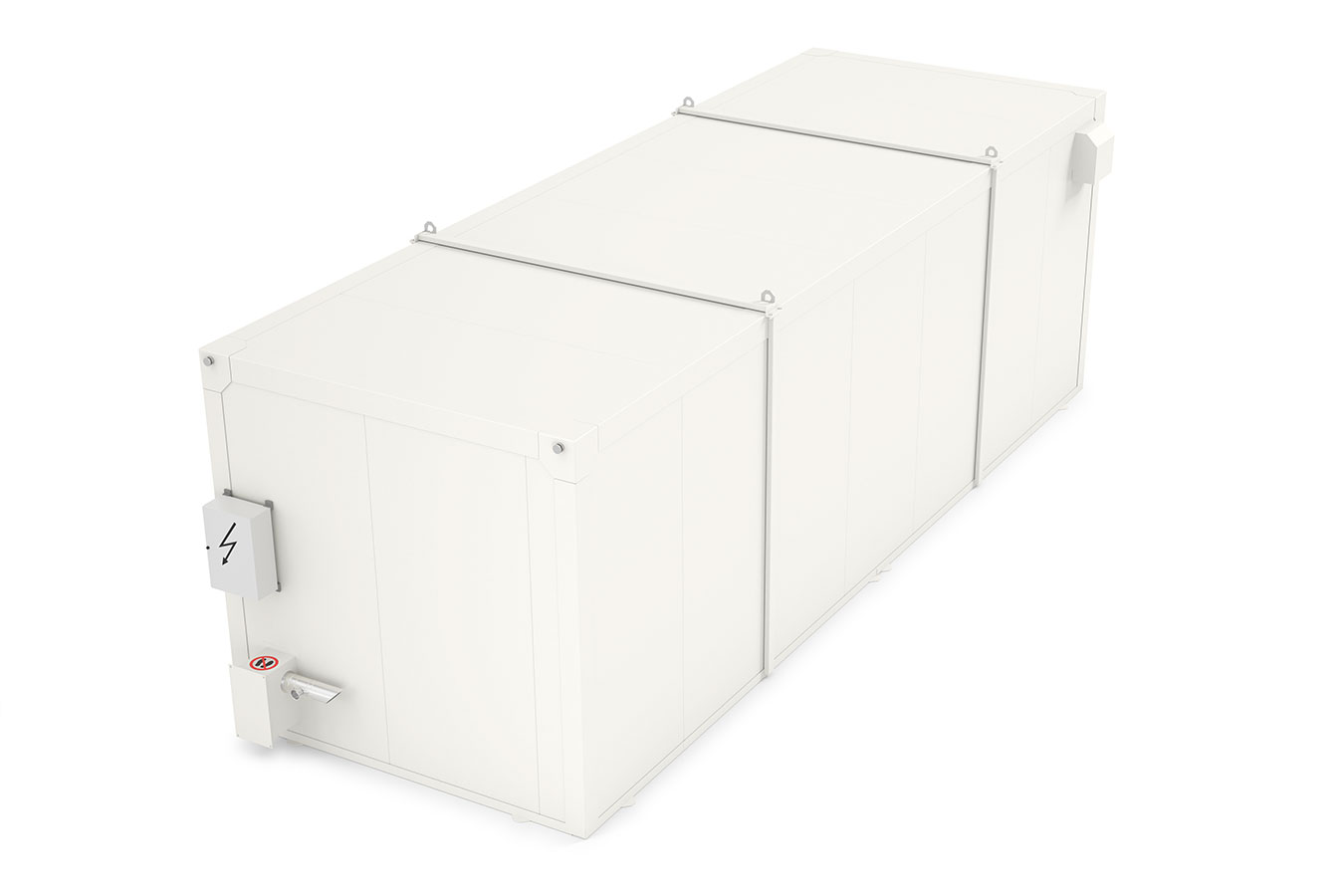

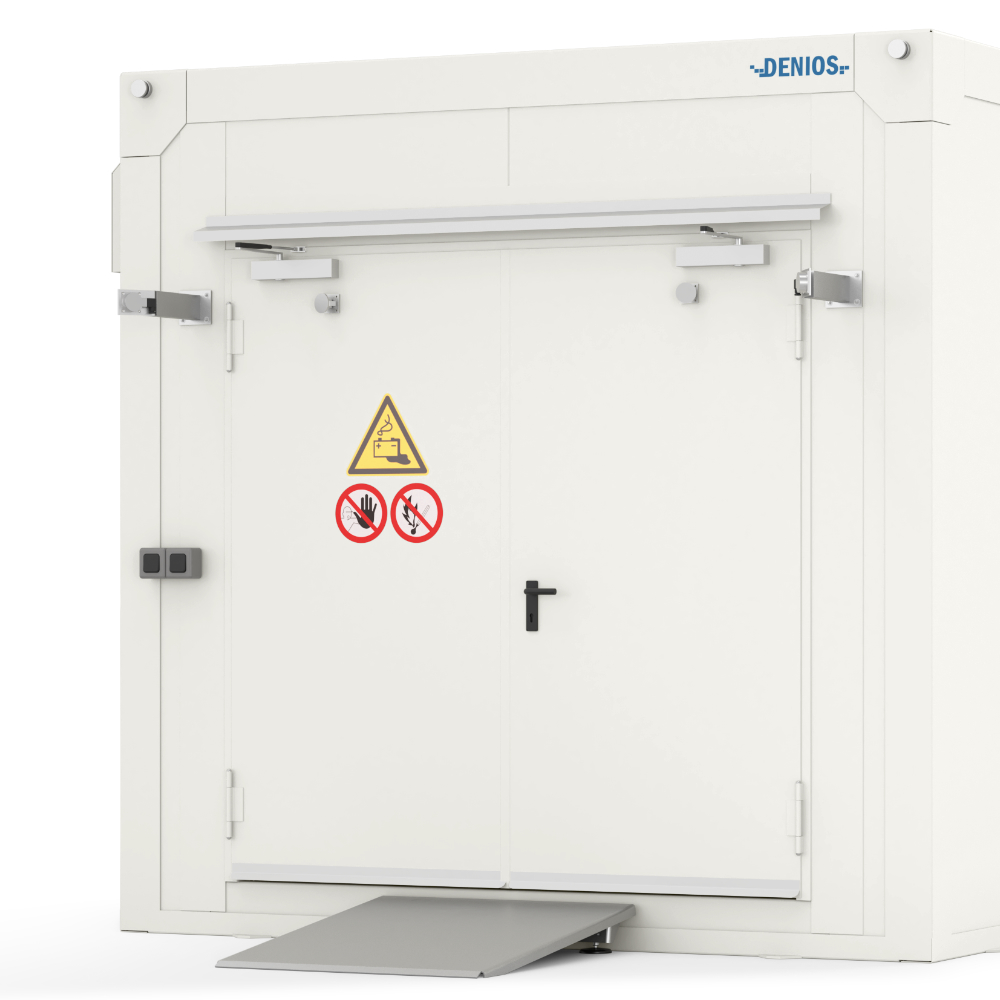

BMC-X 840 Li-Ion
Occupancy fire-rated storage for lithium batteries. 7 sizes up to 30 qm storage area.
DENIOS
Description
Room paneling and door(s) with up to 240 minutes fire resistance. Installation indoors and outdoors on customer-provided concrete pad. Complies with the national standard GB50016 and landmark DB3204, developed based on the approval by DIBt (Germany) and IBS (EU) with adaptions
- Occupancy fire-rated storage for lithium batteries
- Room paneling and door(s) with up to 240 minutes fire resistance
- Flexible installation indoors or outdoors on customer-provided concrete pad
- Various door designs (1-/2-wing) and positions (short side/long side, centered/off-centered) selectable
- Easy access with low door
- Integrated steel spill pallet with removable hot dip galvanised grids
- Sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- An equipotential bonding connection point is provided as standard for avoiding static charges
- Delivered ready assembled, ready for the customer to secure to the ground
- Includes crane eyes for easy unloading
- Points to consider for the storage of flammable substances: equipotential bonding / earthing - technical ventilation
BMC-M 240 Li-Ion
Outer dimension: 2405 x 2460 x 2400
Inner dimension: 2190 x 2245 x 2100
Weight: 1950 KG
BMC-M 360 Li-Ion
Outer dimension: 2405 x 3660 x 2400
Inner dimension: 2190 x 3445 x 2100
Weight: 2420 KG
BMC-X 480 Li-Ion
Outer dimension: 2965 x 4860 x 2850
Inner dimension: 2530 x 4635 x 2460
Weight: 3350 KG
BMC-X 600 Li-Ion
Outer dimension: 2965 x 6060 x 2850
Inner dimension: 2530 x 5845 x 2460
Weight: 4280 KG
BMC-X 840 Li-Ion
Outer dimension: 2965 x 8460 x 2850
Inner dimension: 2530 x 8240 x 2460
Weight: 5240 KG
BMC-X 1000 Li-Ion
Outer dimension: 2965 x 10080 x 2850
Inner dimension: 2530 x 9785 x 2460
Weight: 6480 KG
Base BMC-X 1200 Li-Ion
Outer dimension: 2965 x 12085 x 2850
Inner dimension: 2530 x 11790 x 2460
Weight: 8030 KG
